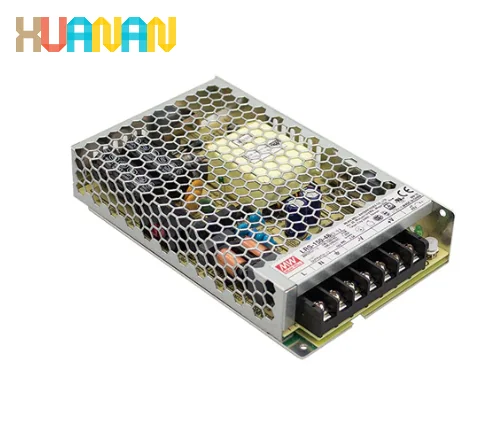

MEAN WELL LRS-150 Series 150W Switching Power Supply – High Efficiency & Low Standby Power
Price available on request
MEAN WELL LRS-150 series 150W switching power supply with low standby power (<0.5W) and high efficiency up to 90%. Available in 12V, 24V, 48V models. Ideal for industrial, automation, and LED applications. 3-year warranty.
- Ultra-Low Standby Power: No-load power consumption <0.5W, helping end systems meet global energy efficiency requirements
- High Efficiency: Up to 90% efficiency reduces energy waste and heat generation
- Wide Input Range: Selectable AC input (85~132VAC / 170~264VAC) via switch, suitable for global use
- Broad Operating Temperature: -30°C ~ +70°C with free air convection cooling (no fan required)
- Rugged Design: 5G vibration resistance and metallic mesh case for enhanced heat dissipation and durability
- High Surge Withstand: Can withstand 300VAC surge input for 5 seconds
- SPU
- MEAN WELL
- MOQ
- 1 units
- Pricing
- Available on request
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- Ultra-Low Standby Power: No-load power consumption <0.5W, helping end systems meet global energy efficiency requirements
- High Efficiency: Up to 90% efficiency reduces energy waste and heat generation
- Wide Input Range: Selectable AC input (85~132VAC / 170~264VAC) via switch, suitable for global use
- Broad Operating Temperature: -30°C ~ +70°C with free air convection cooling (no fan required)
- Rugged Design: 5G vibration resistance and metallic mesh case for enhanced heat dissipation and durability
- High Surge Withstand: Can withstand 300VAC surge input for 5 seconds
- Global Safety Certifications: Approved to UL62368-1, TUV EN/EN62368-1, EN60335-1, EN61558-1/-2-16, and GB 4943.1
- Comprehensive Protections: Built-in short circuit, overload, over voltage, and over temperature protection
- Long Life & Reliability: 3-year warranty from MEAN WELL
- Altitude Operation: Suitable for operation up to 5000 meters
- Ultra-Low Standby Power
- No-load power consumption <0.5W, helping end systems meet global energy efficiency requirements
- High Efficiency
- Up to 90% efficiency reduces energy waste and heat generation
- Wide Input Range
- Selectable AC input (85~132VAC / 170~264VAC) via switch, suitable for global use
- Broad Operating Temperature
- -30°C ~ +70°C with free air convection cooling (no fan required)
- Rugged Design
- 5G vibration resistance and metallic mesh case for enhanced heat dissipation and durability
- High Surge Withstand
- Can withstand 300VAC surge input for 5 seconds
- Global Safety Certifications
- Approved to UL62368-1, TUV EN/EN62368-1, EN60335-1, EN61558-1/-2-16, and GB 4943.1
- Comprehensive Protections
- Built-in short circuit, overload, over voltage, and over temperature protection
- Long Life & Reliability
- 3-year warranty from MEAN WELL
- Altitude Operation
- Suitable for operation up to 5000 meters
Lead time. Stock items ship in 3–7 working days. OEM orders depend on tooling and volume; your account manager confirms the schedule in the quotation.
Shipping. We quote EXW, FOB, CIF and DDP by air, sea or express. Consolidation with other items in the same order is available on request.
Quality & returns. Every batch is inspected before dispatch. Defective units caused by manufacturing are replaced or refunded within 12 months of delivery.
