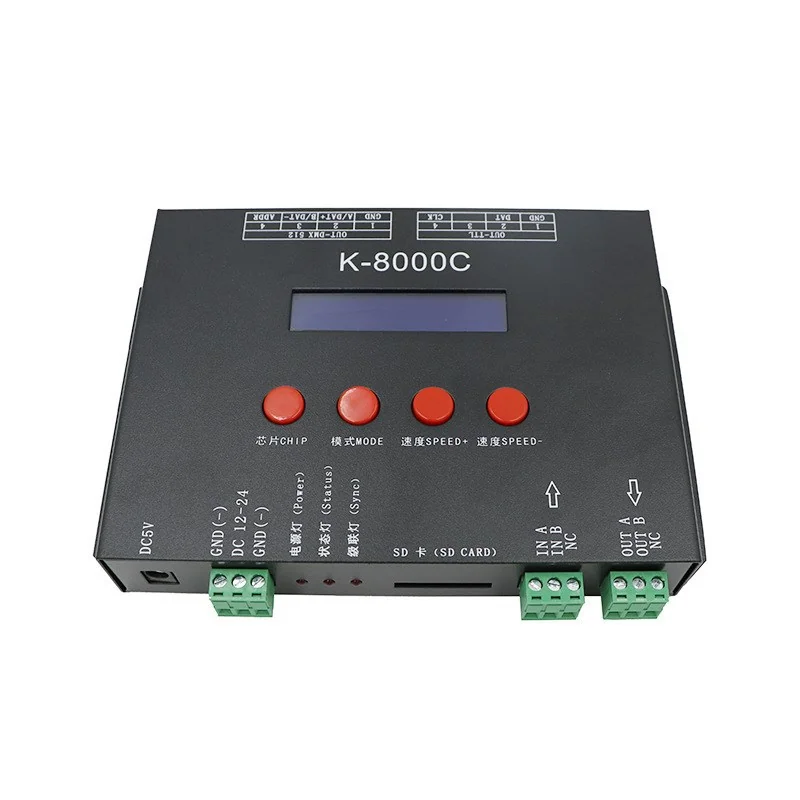

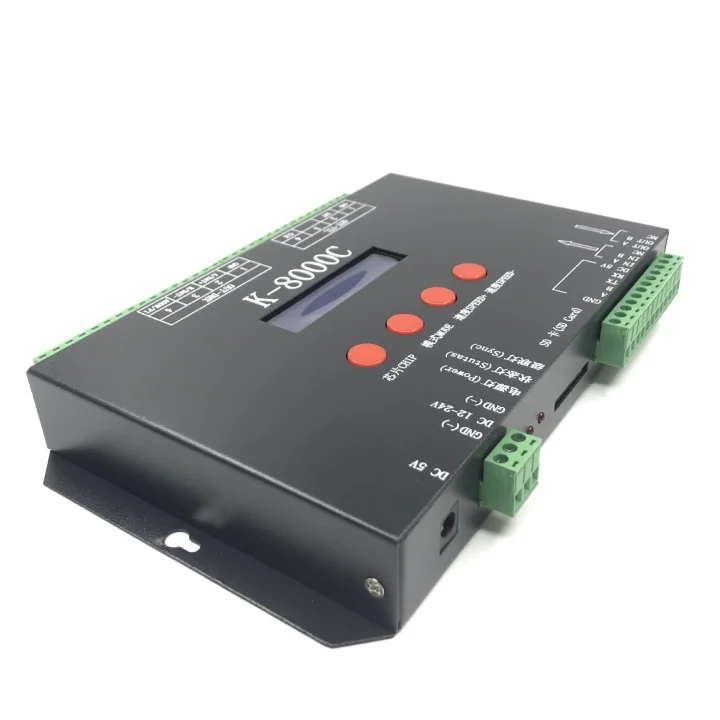

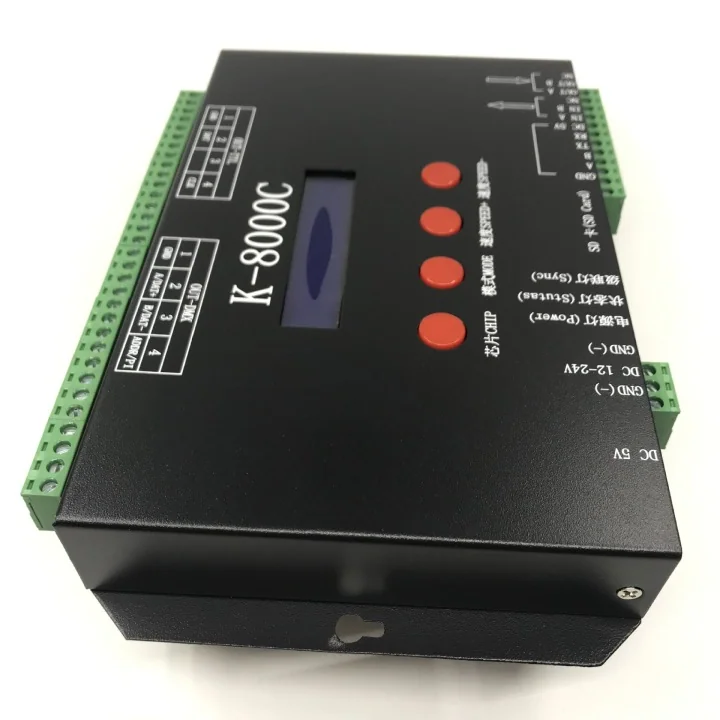

K-8000C SD Card LED Controller – 8-Port, 8192 Pixels, Scalable Control
Price available on request
K-8000C 8-port SD card LED controller supporting up to 8192 SPI pixels or 4096 DMX pixels. Features SD playback, cascading, broad IC support. Ideal for large-scale facade, stadium, and media wall projects. Wholesale price.
- Massive Pixel Capacity: Supports up to 8192 SPI pixels (1024 pixels/port x 8 ports) or 4096 DMX pixels
- 8 Independent Output Ports: Enables flexible large-scale installations and reduces the need for multiple controllers
- SD Card Playback: Stores up to 32 effect files on SD card (128MB – 32GB) for standalone operation
- Precise Grayscale Control: 32 to 65536 grayscale levels with gamma correction for smooth, accurate color rendering
- Flexible Control: Can be used as a single controller or cascaded with multiple units via optical isolation (up to 150m between units)
- Broad IC Compatibility: Supports a vast range of LED driver ICs (see list below) with flexible selection via software or CHIP button
- SPU
- K-8000C SD
- MOQ
- 1 units
- Pricing
- Available on request
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- Massive Pixel Capacity: Supports up to 8192 SPI pixels (1024 pixels/port x 8 ports) or 4096 DMX pixels
- 8 Independent Output Ports: Enables flexible large-scale installations and reduces the need for multiple controllers
- SD Card Playback: Stores up to 32 effect files on SD card (128MB – 32GB) for standalone operation
- Precise Grayscale Control: 32 to 65536 grayscale levels with gamma correction for smooth, accurate color rendering
- Flexible Control: Can be used as a single controller or cascaded with multiple units via optical isolation (up to 150m between units)
- Broad IC Compatibility: Supports a vast range of LED driver ICs (see list below) with flexible selection via software or CHIP button
- Enhanced Signal Output: 485 TTL and 485 differential (DMX) signal outputs for stable long-distance transmission
- DMX Address Writing: Supports address writing for DMX512 lighting ICs, with one-key address setting via LedEdit-K software
- Built-in Test Patterns: Includes test effects (color jump, gradient, fade) for quick setup and troubleshooting
- Advanced Options: Supports GPS synchronization and timing (holidays) playback for scheduled events
- Massive Pixel Capacity
- Supports up to 8192 SPI pixels (1024 pixels/port x 8 ports) or 4096 DMX pixels
- 8 Independent Output Ports
- Enables flexible large-scale installations and reduces the need for multiple controllers
- SD Card Playback
- Stores up to 32 effect files on SD card (128MB – 32GB) for standalone operation
- Precise Grayscale Control
- 32 to 65536 grayscale levels with gamma correction for smooth, accurate color rendering
- Flexible Control
- Can be used as a single controller or cascaded with multiple units via optical isolation (up to 150m between units)
- Broad IC Compatibility
- Supports a vast range of LED driver ICs (see list below) with flexible selection via software or CHIP button
- Enhanced Signal Output
- 485 TTL and 485 differential (DMX) signal outputs for stable long-distance transmission
- DMX Address Writing
- Supports address writing for DMX512 lighting ICs, with one-key address setting via LedEdit-K software
- Built-in Test Patterns
- Includes test effects (color jump, gradient, fade) for quick setup and troubleshooting
- Advanced Options
- Supports GPS synchronization and timing (holidays) playback for scheduled events
