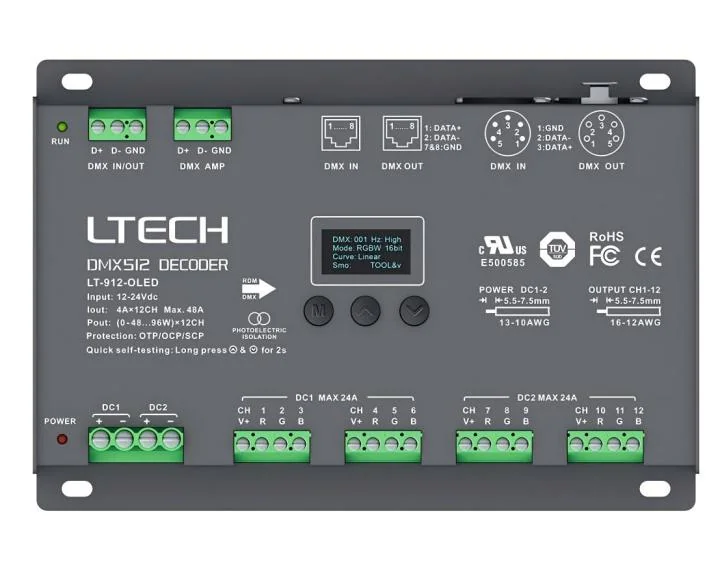

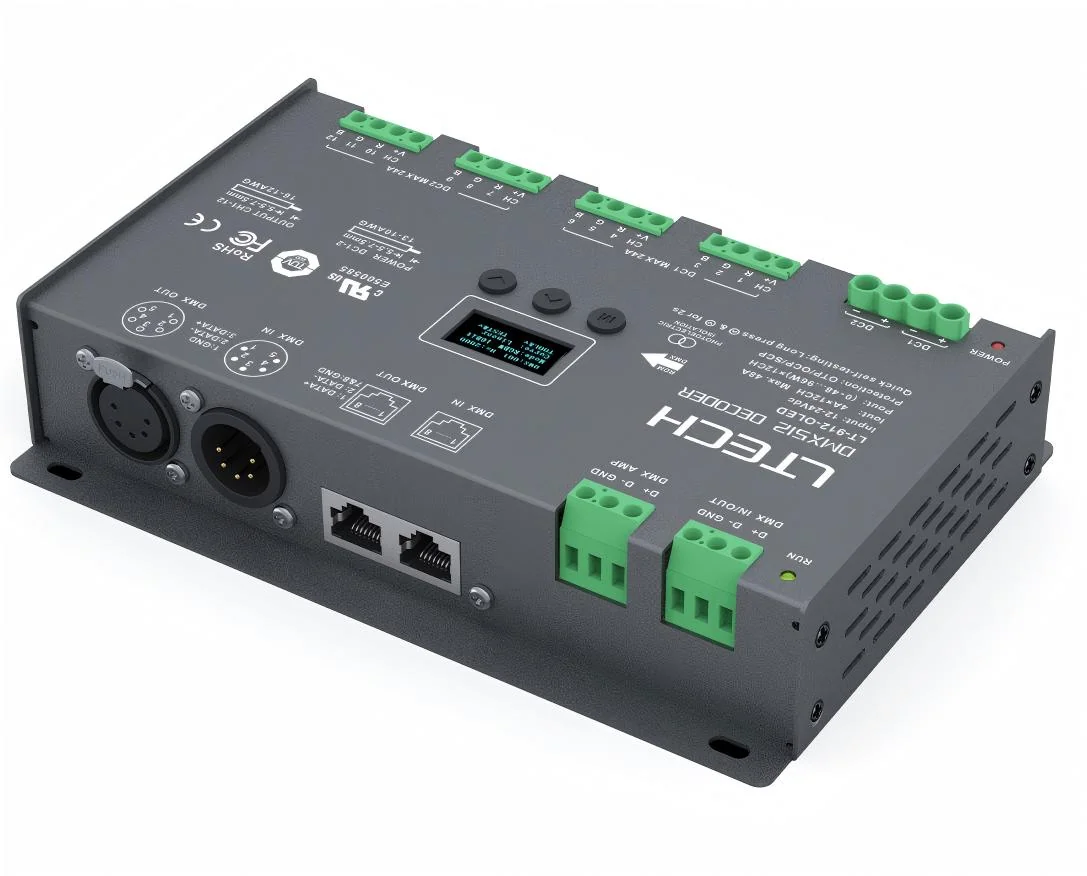

LT-912-OLED LTECH 12-Channel CV DMX/RDM Decoder – 4A/CH, Up to 1152W
Price available on request
LT-912-OLED LTECH 12-channel DMX/RDM decoder with 4A per channel (48A total). Supports 8/16-bit grayscale, DIM/CT/RGB modes, multiple dimming curves, and OLED display. Ideal for RGBW architectural, stage, and commercial lighting. Wholesale price.
- 12 Channels, 4A per Channel: 48A total output, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support: Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Touch Buttons: User-friendly interface for easy parameter adjustment
- Three Control Modes: Selectable DIM (single color), CT (color temperature), or RGB modes
- Flexible DMX Addressing: 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves: Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves
- SPU
- LT-912-OLED LTECH
- MOQ
- 1 units
- Pricing
- Available on request
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- 12 Channels, 4A per Channel: 48A total output, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support: Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Touch Buttons: User-friendly interface for easy parameter adjustment
- Three Control Modes: Selectable DIM (single color), CT (color temperature), or RGB modes
- Flexible DMX Addressing: 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves: Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves
- Multiple DMX Interfaces: Equipped with 5-pin XLR, RJ45, and green terminal connections with photoelectric isolation for stable signal transmission
- Robust Protections: Short circuit, overcurrent, and overtemperature protection with auto-recovery
- 5-Year Warranty: Industry-leading reliability from LTECH
- 12 Channels, 4A per Channel
- 48A total output, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support
- Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Touch Buttons
- User-friendly interface for easy parameter adjustment
- Three Control Modes
- Selectable DIM (single color), CT (color temperature), or RGB modes
- Flexible DMX Addressing
- 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves
- Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves
- Multiple DMX Interfaces
- Equipped with 5-pin XLR, RJ45, and green terminal connections with photoelectric isolation for stable signal transmission
- Robust Protections
- Short circuit, overcurrent, and overtemperature protection with auto-recovery
- 5-Year Warranty
- Industry-leading reliability from LTECH
Lead time. Stock items ship in 3–7 working days. OEM orders depend on tooling and volume; your account manager confirms the schedule in the quotation.
Shipping. We quote EXW, FOB, CIF and DDP by air, sea or express. Consolidation with other items in the same order is available on request.
Quality & returns. Every batch is inspected before dispatch. Defective units caused by manufacturing are replaced or refunded within 12 months of delivery.
