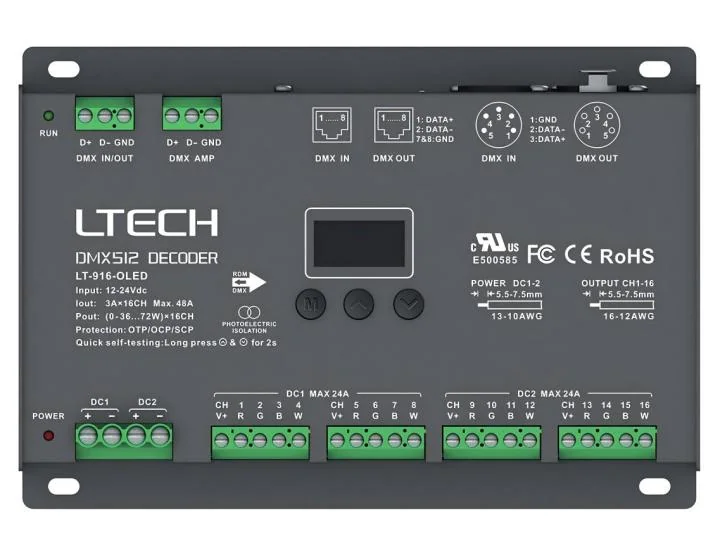

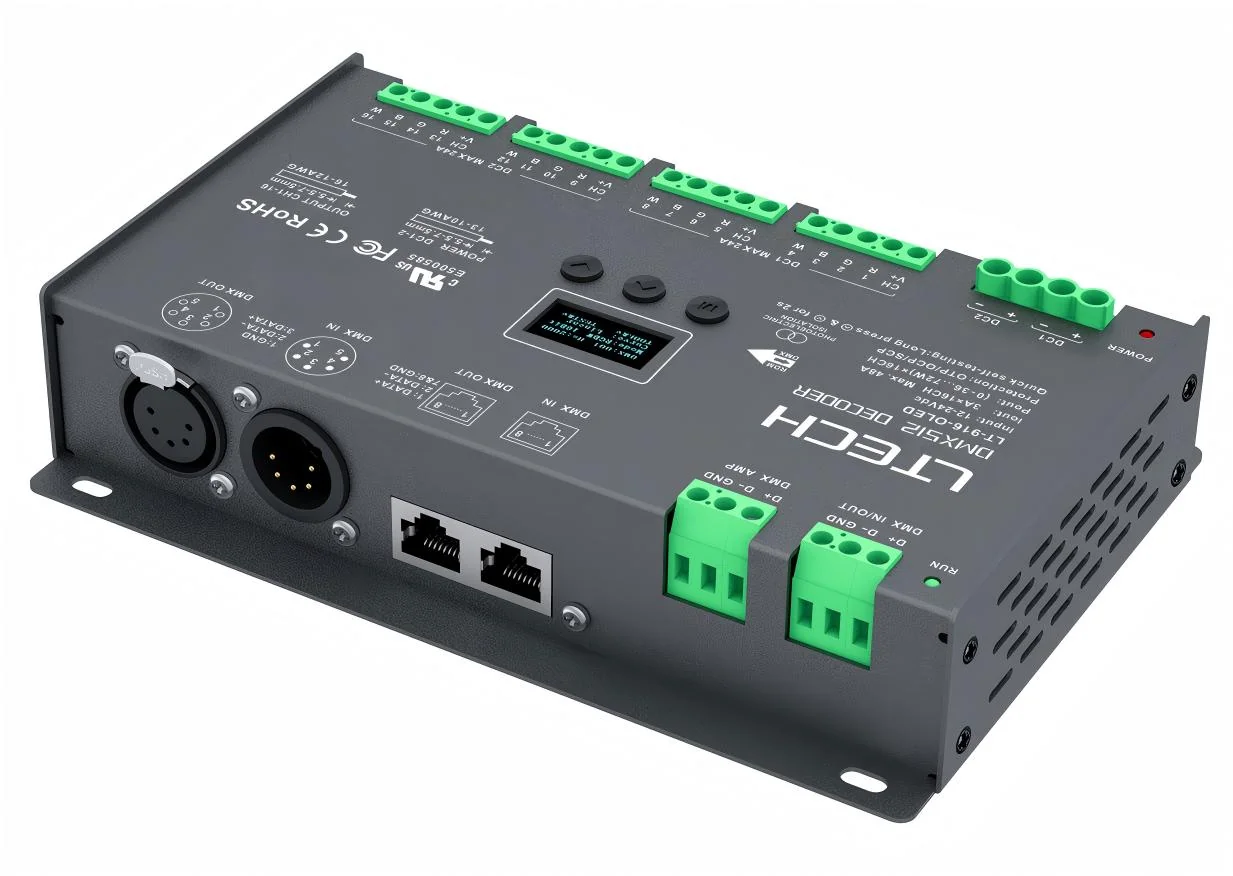

LT-916-OLED LTECH 16-Channel CV DMX/RDM Decoder – Up to 1152W Output
Price available on request
LT-916-OLED LTECH 16-channel DMX/RDM decoder with 3A per channel (48A total). Supports 8/16-bit grayscale, multiple dimming curves, and OLED display. Ideal for RGB/RGBW architectural, stage, and commercial lighting. Wholesale price.
- 16 Channels, High Output: 3A per channel, 48A total, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support: Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Button Control: User-friendly interface for easy parameter adjustment
- Flexible DMX Addressing: 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves: Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves for optimized performance
- Multiple Interfaces: Equipped with 5-pin XLR, RJ45, and green terminal DMX connections with signal amplification
- SPU
- LT-916-OLED LTECH
- MOQ
- 1 units
- Pricing
- Available on request
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- 16 Channels, High Output: 3A per channel, 48A total, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support: Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Button Control: User-friendly interface for easy parameter adjustment
- Flexible DMX Addressing: 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves: Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves for optimized performance
- Multiple Interfaces: Equipped with 5-pin XLR, RJ45, and green terminal DMX connections with signal amplification
- Robust Protections: Short circuit, overcurrent, and overtemperature protection with auto-recovery
- Adjustable PWM Frequency: Configurable for flicker-free dimming across different LED loads
- 5-Year Warranty: Industry-leading reliability from LTECH
- 16 Channels, High Output
- 3A per channel, 48A total, supporting up to 1152W (24V) or 576W (12V)
- DMX512 & RDM Support
- Standard DMX control with RDM for remote address setting and diagnostics
- OLED Display & Button Control
- User-friendly interface for easy parameter adjustment
- Flexible DMX Addressing
- 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming
- Advanced Dimming Curves
- Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves for optimized performance
- Multiple Interfaces
- Equipped with 5-pin XLR, RJ45, and green terminal DMX connections with signal amplification
- Robust Protections
- Short circuit, overcurrent, and overtemperature protection with auto-recovery
- Adjustable PWM Frequency
- Configurable for flicker-free dimming across different LED loads
- 5-Year Warranty
- Industry-leading reliability from LTECH
Lead time. Stock items ship in 3–7 working days. OEM orders depend on tooling and volume; your account manager confirms the schedule in the quotation.
Shipping. We quote EXW, FOB, CIF and DDP by air, sea or express. Consolidation with other items in the same order is available on request.
Quality & returns. Every batch is inspected before dispatch. Defective units caused by manufacturing are replaced or refunded within 12 months of delivery.
