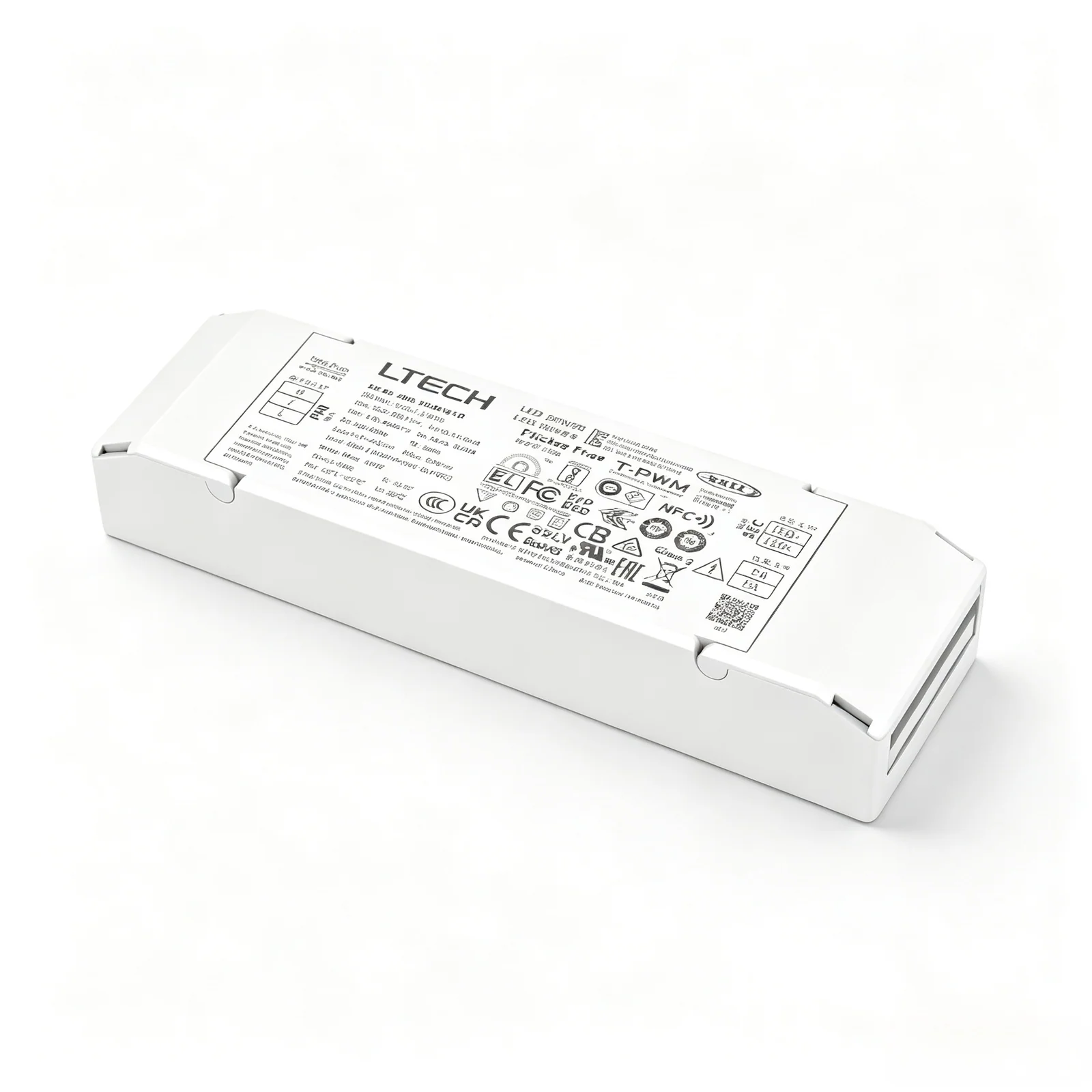

LTECH SE-40-300-1050-W1D 40W NFC DALI-2 DT6 Constant Current LED Driver
Price available on request
LTECH SE-40-300-1050-W1D 40W NFC DALI-2 DT6 constant current LED driver with 300-1050mA adjustable output, T-PWM 0.01% dimming, and 5-year warranty. Ideal for commercial and architectural lighting. Wholesale price.
- DALI-2 DT6 Control: Fully compliant with IEC62386-101, 102, 207 standards. Supports DALI group and scene setup via advanced template
- NFC Programmable Output: Adjust output current (300-1050mA, 1mA step), DALI address, and other parameters via NFC programmer or mobile APP (NFC Lighting) – no power required for programming
- T-PWM Super Deep Dimming: 0-100% dimming range down to 0.01%, flicker-free with high frequency exemption level. Soft-on and fade-in functions enhance visual comfort
- Ultra-Low Standby Power: Network standby and no-load power consumption <0.5W, compliant with EU ErP Directive
- 0V No-Load Output: Output drops to 0V when no load is connected, preventing LED damage from poor contact
- V0 Flame-Retardant Housing: Ultra-compact (142×40×23mm), lightweight design with screwless end caps. Housing made from SAMSUNG/COVESTRO materials
- SPU
- LTECH SE-40-300-1050-W1D
- MOQ
- 1 units
- Pricing
- Available on request
Global ShippingEXW / FOB / DDP
12-month WarrantyAfter-sales support
OEM & ODMCustom packaging
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- DALI-2 DT6 Control: Fully compliant with IEC62386-101, 102, 207 standards. Supports DALI group and scene setup via advanced template
- NFC Programmable Output: Adjust output current (300-1050mA, 1mA step), DALI address, and other parameters via NFC programmer or mobile APP (NFC Lighting) – no power required for programming
- T-PWM Super Deep Dimming: 0-100% dimming range down to 0.01%, flicker-free with high frequency exemption level. Soft-on and fade-in functions enhance visual comfort
- Ultra-Low Standby Power: Network standby and no-load power consumption <0.5W, compliant with EU ErP Directive
- 0V No-Load Output: Output drops to 0V when no load is connected, preventing LED damage from poor contact
- V0 Flame-Retardant Housing: Ultra-compact (142×40×23mm), lightweight design with screwless end caps. Housing made from SAMSUNG/COVESTRO materials
- Comprehensive Protections: Overheat, overvoltage, overload, and short circuit protection with automatic recovery
- 100,000-Hour Lifespan & 5-Year Warranty: Rubycon capacitor ensures long-term reliability
- Global Safety Certifications: UL, CUL, ENEC, CE, CB, TUV, CCC, KC, EAC, RCM, UKCA, BIS, RoHS, PSE
- DALI-2 DT6 Control
- Fully compliant with IEC62386-101, 102, 207 standards. Supports DALI group and scene setup via advanced template
- NFC Programmable Output
- Adjust output current (300-1050mA, 1mA step), DALI address, and other parameters via NFC programmer or mobile APP (NFC Lighting) – no power required for programming
- T-PWM Super Deep Dimming
- 0-100% dimming range down to 0.01%, flicker-free with high frequency exemption level. Soft-on and fade-in functions enhance visual comfort
- Ultra-Low Standby Power
- Network standby and no-load power consumption <0.5W, compliant with EU ErP Directive
- 0V No-Load Output
- Output drops to 0V when no load is connected, preventing LED damage from poor contact
- V0 Flame-Retardant Housing
- Ultra-compact (142×40×23mm), lightweight design with screwless end caps. Housing made from SAMSUNG/COVESTRO materials
- Comprehensive Protections
- Overheat, overvoltage, overload, and short circuit protection with automatic recovery
- 100,000-Hour Lifespan & 5-Year Warranty
- Rubycon capacitor ensures long-term reliability
- Global Safety Certifications
- UL, CUL, ENEC, CE, CB, TUV, CCC, KC, EAC, RCM, UKCA, BIS, RoHS, PSE
