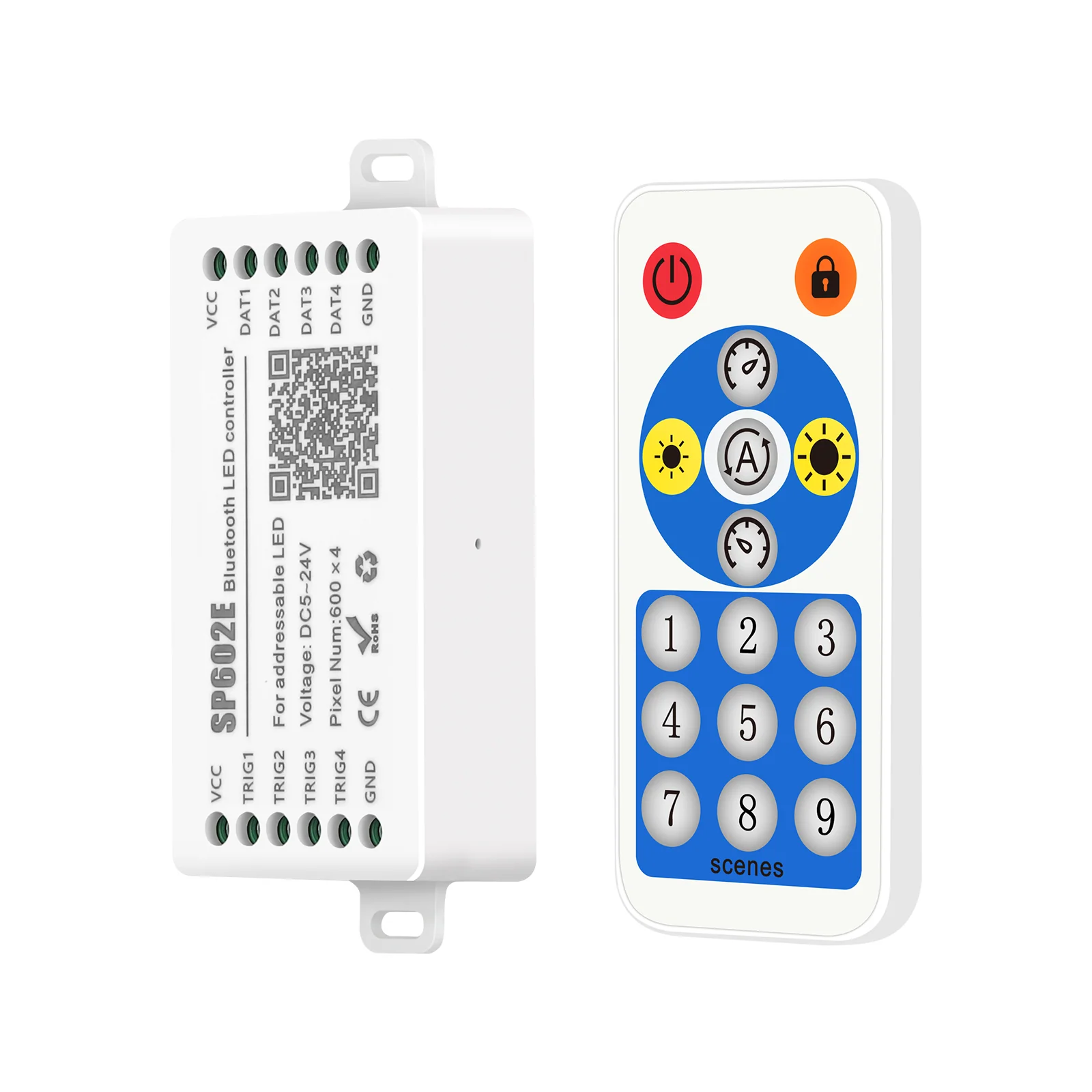

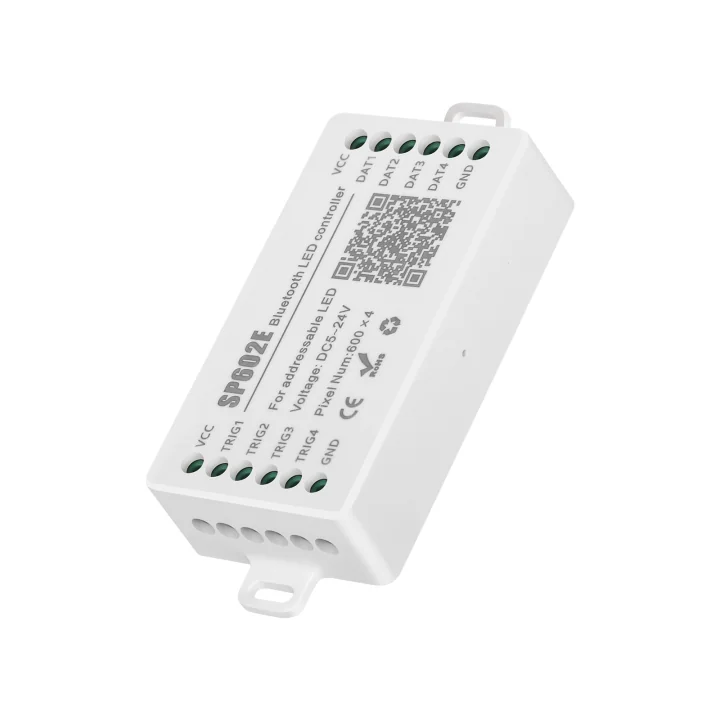

SP602E Bluetooth & RF 4-Channel Pixel LED Controller – APP/Remote, Music Sync
Price available on request
SP602E Bluetooth & RF 4-channel pixel LED controller with APP control, music sync, and 2400-pixel capacity. Supports WS2811/WS2812B/WS2815. Ideal for addressable LED projects. Wholesale price.
- 4 Independent Output Ports: Control up to 600 pixels per port (2400 pixels total), with each port's effect settable independently or synchronized
- Dual Control Modes: Supports mobile app (iOS/Android) and RF remote control for flexible operation
- Rich Effect Library: 40+ dynamic modes (rainbow, twinkle, fire, chase, wave, etc.) and 9 assignable scenes. Adjustable speed, brightness, and color
- Music Sync Mode: Built-in microphone enables effects that react to music beats
- Group & Trigger Control: Create groups to manage multiple devices, or use 4 trigger inputs (e.g., for automotive turn/brake lights)
- Timer Function: Schedule up to 5 daily events to automatically turn effects on/off
- SPU
- SP602E Bluetooth
- MOQ
- 1 units
- Pricing
- Available on request
Send us your target specification and volume — our engineering team replies with lead time, tooling and quotation within one business day.
Features
- 4 Independent Output Ports: Control up to 600 pixels per port (2400 pixels total), with each port's effect settable independently or synchronized
- Dual Control Modes: Supports mobile app (iOS/Android) and RF remote control for flexible operation
- Rich Effect Library: 40+ dynamic modes (rainbow, twinkle, fire, chase, wave, etc.) and 9 assignable scenes. Adjustable speed, brightness, and color
- Music Sync Mode: Built-in microphone enables effects that react to music beats
- Group & Trigger Control: Create groups to manage multiple devices, or use 4 trigger inputs (e.g., for automotive turn/brake lights)
- Timer Function: Schedule up to 5 daily events to automatically turn effects on/off
- Wide Voltage Input: DC 5V–24V, suitable for various LED strips
- Broad IC Compatibility: Supports WS2811, WS2812B, WS2813, WS2815, SK6812 (non-RGBW), UCS1903, SM16703, and more
- 4 Independent Output Ports
- Control up to 600 pixels per port (2400 pixels total), with each port's effect settable independently or synchronized
- Dual Control Modes
- Supports mobile app (iOS/Android) and RF remote control for flexible operation
- Rich Effect Library
- 40+ dynamic modes (rainbow, twinkle, fire, chase, wave, etc.) and 9 assignable scenes. Adjustable speed, brightness, and color
- Music Sync Mode
- Built-in microphone enables effects that react to music beats
- Group & Trigger Control
- Create groups to manage multiple devices, or use 4 trigger inputs (e.g., for automotive turn/brake lights)
- Timer Function
- Schedule up to 5 daily events to automatically turn effects on/off
- Wide Voltage Input
- DC 5V–24V, suitable for various LED strips
- Broad IC Compatibility
- Supports WS2811, WS2812B, WS2813, WS2815, SK6812 (non-RGBW), UCS1903, SM16703, and more
Lead time. Stock items ship in 3–7 working days. OEM orders depend on tooling and volume; your account manager confirms the schedule in the quotation.
Shipping. We quote EXW, FOB, CIF and DDP by air, sea or express. Consolidation with other items in the same order is available on request.
Quality & returns. Every batch is inspected before dispatch. Defective units caused by manufacturing are replaced or refunded within 12 months of delivery.
